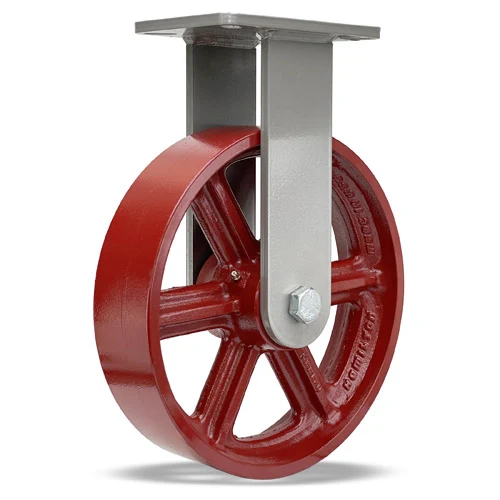

Hamilton R-CH-12MH Champion Rigid Caster, 12" x 3" Metal

Hamilton Caster Item #R-CH-12MH · MFR #R-CH-12MH
Quick Answer: The Hamilton R-CH-12MH is a rigid Champion series caster with a 12" x 3" Metal wheel rated 2,500 lb, priced at $227.00. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Champion rigid caster with 12" x 3" Metal wheel, straight roller, 2,500 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton R-CH-12MH is a rigid top-plate caster from the forged-steel Champion series — a heavier plate and thicker legs step capacity up for demanding factory service. It runs a 12" x 3" Metal wheel on straight roller bearings and carries a dynamic rating of 2,500 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 2,500 lb dynamic capacity per caster (at walking speed)
  • 12" x 3" Metal wheel — straight roller
  • Rigid weldment rig for straight-line tracking
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 5 1/4 x 7 1/4" top plate, bolt pattern 3 3/8 x 5 1/4"
  • 15.5" overall height
  • Field-replaceable wheel (replacement part W-1230-M-1)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Ergonomic Contact Brake
  • Side Foot Brake
  • Rap-A-Round Foot Brake
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberR-CH-12MH
Manufacturer Part #R-CH-12MH
BrandHamilton Caster
Swivel or Rigid casterRigid
Load Capacity (lbs.) @ 3 mph2500
Wheel Diameter (in.)12
Wheel Face (in.)3
Overall Height (in.)15.5
Mounting Plate (in.)5 1/4 x 7 1/4
Bolt Hole 1 (in.)3 3/8 x 5 1/4
Bolt Hole 2 (in.)4 1/8 x 6 1/8
Mounting Bolt (in.)0.5
Caster Color/FinishPlatinum Powder
Wheel TypeMetal
Wheel Color/FinishCrimson Red
Wheel Material @ TreadMetal
Shipping Weight (lbs.)42
3D view optionyes
Caster Rig TypeWeldment
Mounting Plate Length (in.)7.25
Mounting Plate Width (in.)5.25
Wheel Core MaterialCast Iron
High Temp. Range (F)320
Low Temp. Range (F)-40
Relative CapacityHigh
Impact ResistanceLow
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceHigh
Cushioning (Resilience)Low
Relative CostLow
Bearing TypeStraight Roller
Replacement WheelW-1230-M-1
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidRigid
