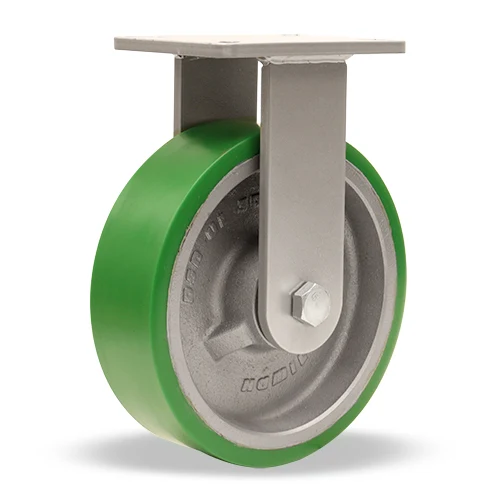

Hamilton R-CH-13DB Champion Rigid Caster, 10" x 3" Polyurethane

Hamilton Caster Item #R-CH-13DB · MFR #R-CH-13DB
Quick Answer: The Hamilton R-CH-13DB is a rigid Champion series caster with a 10" x 3" Duralast® Polyurethane wheel rated 3,000 lb, priced at $222.17. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Champion rigid caster with 10" x 3" Duralast® Polyurethane wheel, precision sealed ball, 3,000 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton R-CH-13DB is a rigid top-plate caster from the forged-steel Champion series — a heavier plate and thicker legs step capacity up for demanding factory service. It runs a 10" x 3" Duralast® Polyurethane wheel on precision sealed ball bearings and carries a dynamic rating of 3,000 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 3,000 lb dynamic capacity per caster (at walking speed)
  • 10" x 3" Duralast® Polyurethane wheel — precision sealed ball
  • Rigid weldment rig for straight-line tracking
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 5 1/4 x 7 1/4" top plate, bolt pattern 3 3/8 x 5 1/4"
  • 12.5" overall height
  • Field-replaceable wheel (replacement part W-1030-DB-3/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Ergonomic Contact Brake
  • Side Foot Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Rap-A-Round Foot Brake
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberR-CH-13DB
Manufacturer Part #R-CH-13DB
BrandHamilton Caster
Swivel or Rigid casterRigid
Load Capacity (lbs.) @ 3 mph3000
Wheel Diameter (in.)10
Wheel Face (in.)3
Overall Height (in.)12.5
Mounting Plate (in.)5 1/4 x 7 1/4
Bolt Hole 1 (in.)3 3/8 x 5 1/4
Bolt Hole 2 (in.)4 1/8 x 6 1/8
Mounting Bolt (in.)0.5
Caster Color/FinishPlatinum Powder
Wheel TypeDuralast®
Wheel Color/FinishGreen Poly on Gray Center
Wheel Material @ TreadPolyurethane
Shipping Weight (lbs.)29
3D view optionyes
Caster Rig TypeWeldment
Mounting Plate Length (in.)7.25
Mounting Plate Width (in.)5.25
Wheel Core MaterialCast Iron
High Temp. Range (F)160°F
Low Temp. Range (F)-5°F
Relative CapacityHigh
Impact ResistanceMedium
Abrasion ResistanceHigh
Chemical ResistantMedium
Moisture ResistanceMedium
Cushioning (Resilience)Medium
Relative CostMedium
Bearing TypePrecision Sealed Ball
Replacement WheelW-1030-DB-3/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidRigid
