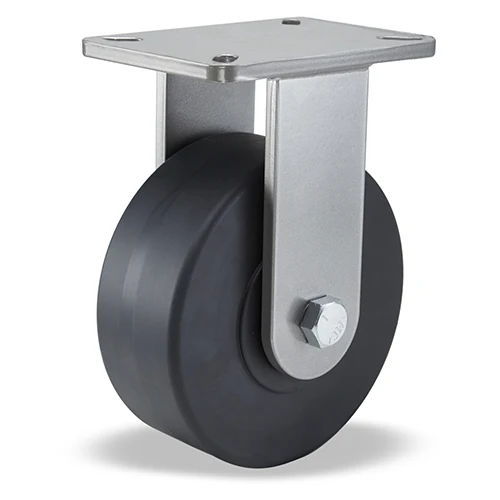

Hamilton R-CH-83NYB Champion Rigid Caster, 8" x 3" Nylon

Hamilton Caster Item #R-CH-83NYB · MFR #R-CH-83NYB
Quick Answer: The Hamilton R-CH-83NYB is a rigid Champion series caster with a 8" x 3" Nylast® Nylon wheel rated 4,000 lb, priced at $308.05. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Champion rigid caster with 8" x 3" Nylast® Nylon wheel, precision sealed ball, 4,000 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton R-CH-83NYB is a rigid top-plate caster from the forged-steel Champion series — a heavier plate and thicker legs step capacity up for demanding factory service. It runs a 8" x 3" Nylast® Nylon wheel on precision sealed ball bearings and carries a dynamic rating of 4,000 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 4,000 lb dynamic capacity per caster (at walking speed)
  • 8" x 3" Nylast® Nylon wheel — precision sealed ball
  • Rigid weldment rig for straight-line tracking
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 5 1/4 x 7 1/4" top plate, bolt pattern 3 3/8 x 5 1/4"
  • 10.5" overall height
  • Field-replaceable wheel (replacement part W-830-NYB-3/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Ergonomic Contact Brake
  • Side Foot Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Rap-A-Round Foot Brake
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberR-CH-83NYB
Manufacturer Part #R-CH-83NYB
BrandHamilton Caster
Swivel or Rigid casterRigid
Load Capacity (lbs.) @ 3 mph4000
Wheel Diameter (in.)8
Wheel Face (in.)3
Overall Height (in.)10.5
Mounting Plate (in.)5 1/4 x 7 1/4
Bolt Hole 1 (in.)3 3/8 x 5 1/4
Bolt Hole 2 (in.)4 1/8 x 6 1/8
Mounting Bolt (in.)0.5
Caster Color/FinishPlatinum Powder
Wheel TypeNylast®
Wheel Color/FinishCharcoal gray
Wheel Material @ TreadNylon
Shipping Weight (lbs.)20
3D view optionyes
Caster Rig TypeWeldment
Mounting Plate Length (in.)7.25
Mounting Plate Width (in.)5.25
Wheel Core MaterialNylon
High Temp. Range (F)220
Low Temp. Range (F)-30
Relative CapacityHigh
Impact ResistanceMedium
Abrasion ResistanceMedium
Chemical ResistantHigh
Moisture ResistanceHigh
Cushioning (Resilience)Low
Relative CostHigh
Bearing TypePrecision Sealed Ball
Replacement WheelW-830-NYB-3/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidRigid
