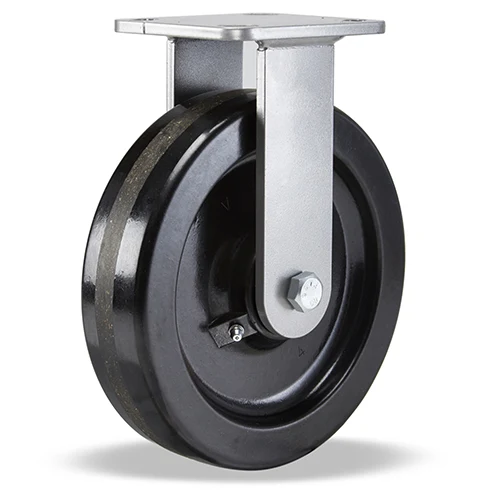

Hamilton R-WH-8P Workhorse Rigid Caster, 8" x 2" Phenolic

Hamilton Caster Item #R-WH-8P · MFR #R-WH-8P
Quick Answer: The Hamilton R-WH-8P is a rigid Workhorse series caster with a 8" x 2" Plastex Phenolic wheel rated 1,400 lb, priced at $46.07. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Workhorse rigid caster with 8" x 2" Plastex Phenolic wheel, straight roller, 1,400 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton R-WH-8P is a rigid top-plate caster from the forged-steel Workhorse series — Hamilton’s mid-capacity industrial workhorse for carts, platform trucks, and racks. It runs a 8" x 2" Plastex Phenolic wheel on straight roller bearings and carries a dynamic rating of 1,400 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 1,400 lb dynamic capacity per caster (at walking speed)
  • 8" x 2" Plastex Phenolic wheel — straight roller
  • Rigid weldment rig for straight-line tracking
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 4 x 4 1/2" top plate, bolt pattern 2 5/8 x 3 5/8"
  • 9.5" overall height
  • Field-replaceable wheel (replacement part W-820-P-3/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Ergonomic Contact Brake
  • Side Foot Brake
  • ToeGuard
  • ToeGuard w/ Brush
  • ToeGuard w/ Ergo Contact Brake
  • ToeGuard w/ Ergo Brake & Brush
  • ToeGuard w/ Contact Brake
  • ToeGuard w/ Contact Brake & Brush
  • Rap-A-Round Foot Brake
  • Heavy Duty Contact Brake

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberR-WH-8P
Manufacturer Part #R-WH-8P
BrandHamilton Caster
Load Capacity (lbs.) @ 3 mph1400
Wheel Diameter (in.)8
Wheel Face (in.)2
Overall Height (in.)9.5
Mounting Plate (in.)4 x 4 1/2
Bolt Hole 1 (in.)2 5/8 x 3 5/8
Bolt Hole 2 (in.)3 x 3
Mounting Bolt (in.)0.375
Caster Color/FinishPlatinum Powder
Wheel TypePlastex
Wheel Color/FinishBlack
Bearing TypeStraight Roller
Wheel Material @ TreadPhenolic
Shipping Weight (lbs.)8
Caster Rig TypeWeldment
Wheel Core MaterialPhenolic
High Temp. Range (F)300
Low Temp. Range (F)-50
Relative CapacityHigh
Impact ResistanceMedium
Abrasion ResistanceMedium
Chemical ResistantPoor
Moisture ResistanceLow
Cushioning (Resilience)Low
Relative CostLow
Replacement WheelW-820-P-3/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidRigid
