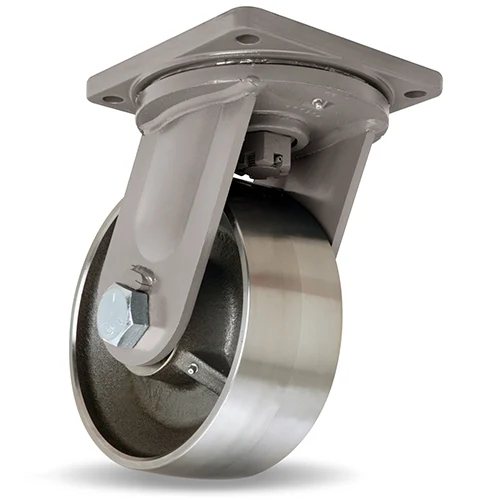

Hamilton S-MD-104FST Maxi-Duty Swivel Caster, 10" x 4" Forged Steel

Hamilton Caster Item #S-MD-104FST · MFR #S-MD-104FST
Quick Answer: The Hamilton S-MD-104FST is a swivel Maxi-Duty series caster with a 10" x 4" Forged Steel wheel rated 18,000 lb, priced at $632.14. Made in USA with a 3-year warranty; ships in 24–48 hours from the factory.
  • Hamilton Maxi-Duty swivel caster with 10" x 4" Forged Steel wheel, tapered roller, 18,000 lb capacity.
  • Made in USA, 3-year warranty.
Condition
New
🚚 Factory-Direct Shipping 🏷️ Volume Pricing Available 🛠️ Expert Support: (847) 278-2311 Sales & expertise backed by Premier Handling Solutions, Inc.

Product Details

The Hamilton S-MD-104FST is a swivel top-plate caster from the Maxi-Duty series — forged from solid steel for the highest plate-caster capacities Hamilton builds. It runs a 10" x 4" Forged Steel wheel on tapered roller bearings and carries a dynamic rating of 18,000 lb per caster. Made in the USA by Hamilton Caster, backed by a 3-year manufacturer warranty, and it typically ships in 24–48 hours from the factory.

Key features

  • 18,000 lb dynamic capacity per caster (at walking speed)
  • 10" x 4" Forged Steel wheel — tapered roller
  • Kingpin swivel section for full maneuverability
  • Forged/heavy-gauge steel rig, Platinum Powder finish
  • 8 1/2 x 8 1/2" top plate, bolt pattern 7 x 7"
  • 13" overall height
  • Field-replaceable wheel (replacement part W-1040-FST-1-1/4)
  • Made in USA — 3-year Hamilton manufacturer warranty

Options & add-ons

  • Four-Position Swivel Lock
  • CRS Wheel Bearing Seals
  • Ergo Four-Position Swivel Lock
  • Heavy Duty Contact Brake
  • Swivel Seals

Brakes, toe guards, and other add-ons are quoted with your order — tell us your configuration and we’ll spec it out.

Specifications

Item NumberS-MD-104FST
Manufacturer Part #S-MD-104FST
BrandHamilton Caster
Swivel or Rigid casterSwivel
Load Capacity (lbs.) @ 3 mph18000
Wheel Diameter (in.)10
Wheel Face (in.)4
Overall Height (in.)13
Swivel Offset (in.)3
Mounting Plate (in.)8 1/2 x 8 1/2
Mounting Bolt (in.)0.625
Caster Color/FinishPlatinum Powder
Wheel TypeForged Steel
Wheel Color/FinishClearcoat
Bearing TypeTapered Roller
Wheel Material @ TreadMetal
Shipping Weight (lbs.)90
Bolt Holes (in.)7 x 7
Caster Rig TypeIntegral Forged Kingpin
NoteThe four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.
High Temp. Range (F)320
Low Temp. Range (F)-40
Relative CapacityVery High
Impact ResistanceHigh
Abrasion ResistanceVery High
Chemical ResistantMedium
Moisture ResistanceHigh
Cushioning (Resilience)Low
Relative CostHigh
Replacement WheelW-1040-FST-1-1/4
Country of OriginUSA
Warranty3 Years (manufacturer)
Swivel or RigidSwivel
