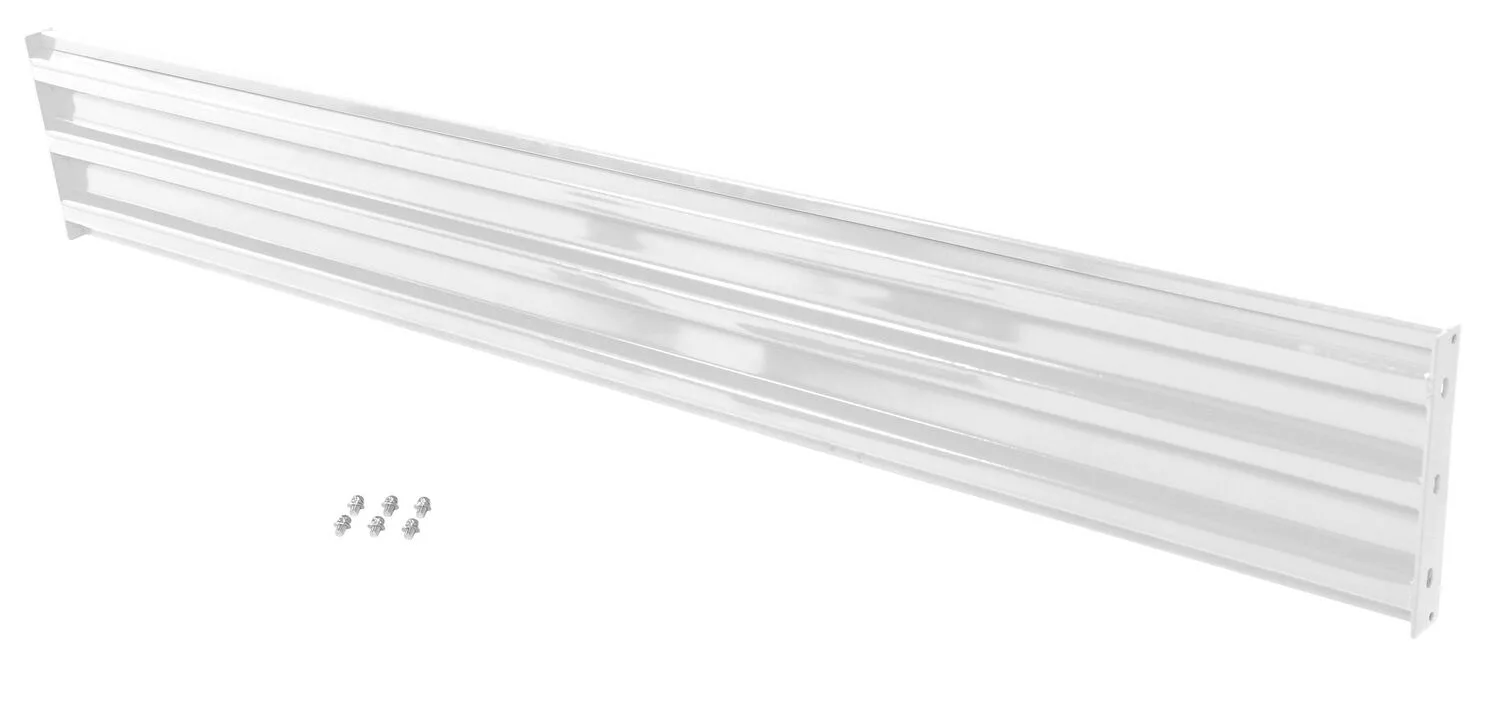

Vestil Steel 3 Ribbed Bolt On Style Guard Rail 113.875 In. Length White
- 113.875 In 3Rib Bolt On Grd Rail WH
- Brand
Vestil- Condition
- New
- Weight
- 104 lb
- Dimensions
- 2.5625β³L Γ 113.875β³W Γ 15β³H
- Category
- Guard Rails
Product Details
Create a modular system to protect equipment, inventory, and individuals from damage or injury with this highly visible powder coat yellow structural guard rail. Rails are constructed from 1/8" thick material, made for high impact resistance indoors or out. Posts are constructed of round corner 1/4" thick material. The steel base plate measures 10" square and is 5/8" thick. Bolts and washers are provided with individual rail sections. Concrete mounting kit is available separately. Provide a strong barrier with easy accessibility with our drop-In style rails. Slide rail sections into post saddles for simple assembly. Each drop-In style rail section includes two brackets. Bolt-on style rails are designed for permanent installation. Models GR-TP-YL and GR-TP-GAL posts include mounting holes on all four sides for use in corners or center posts. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
- 3 Ribbed design for added strength
- White baked-in powder-coated finish for added toughness
- Bolt-on style rail for secure positioning
- Pre drilled surface mounting holes
Specifications
| Item Number | GR-F3R-BO-10-WT |
|---|---|
| Manufacturer Part # | GR-F3R-BO-10-WT |
| Brand | |
| Weight | 104 lb |
| Dimensions (LΓWΓH) | 2.5625β³ Γ 113.875β³ Γ 15β³ |
| Material | Steel |
| Color | White |
| Freight Class | 300 |
| Lead Time | 30 business days |
| Country of Origin | TR |
| Warranty | 90 Days (Limited - Parts) |
Documents & Resources
Testing Certificates
Customer Reviews
No reviews yet β be the first to review this product.
